MedTest EZ Ensemble


(Chemistry)


The MedTest EZ Ensemble provides exceptional value and convenience by bringing together everything your low-volume laboratory needs to perform clinical testing. MedTest will manage and oversee every step of your customized project.

Dealing with multiple vendors has become a thing of the past. All you need to do is place one order with us, and we'll take care of the rest.

  • Analyzer
  • Menu
  • Consumables
  • Service & Support

Ordering Information



Catalog:

Description:

SP-4430

Spotchem EZ Analyzer

SP-4430-FT

Spotchem EZ Analyzer (Field Tested)

SPOTCHEM-SP

Extended Service Plan (1 year)



Overview

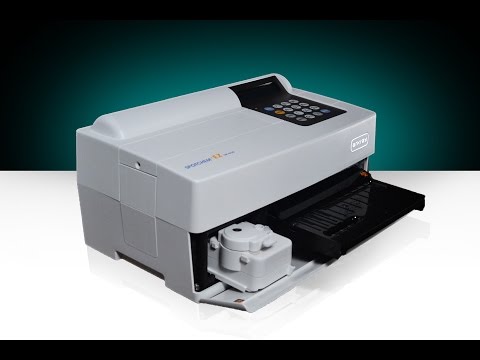

SPOTCHEM™ EZ is a small bench top chemistry analyzer that utilizes dry chemistry technology.



Testing is performed on reagent strips with results available within 3 - 15 minutes.



The menu consists of 21 tests with a throughput of 48 tests per hour.



The instrument accepts whole blood and serum samples and is calibrated automatically with the swipe of a magnetic card.



At the conclusion of testing, results are available on the SPOTCHEM™ EZ printer or downloaded via LIS system.



SPOTCHEM™ EZ is ideally suited for small laboratories and physician offices that desire an easy-to-use analyzer with a small footprint and limited maintenance requirements.



Specifications



Sample:

Whole Blood, Serum or Plasma

Processing Speed:

48 samples per hour



Minimum Sample Volume:

250 µL



Measurement Wavelength:

405nm, 550nm, 575nm, 610nm, 820nm

Measurement Principle:

Optical measurement of reflection intensity of reagent color reaction

Simultaneous Measurement:

3 Single Reagent Strips and / or 1 Multi Reagent Strip

Reagent Reaction Temperature:

37° C

Light Source:

LED and Interference filter

Calibration Method:

Calibration by magnetic card

Display:

20 digits x 2 lines LCD

Built-In Printer:

36-character thermal printer (58 mm width)

External Output:

RS-232C interface

Power Supply:

AC100~120V, 220~240V, 50/60Hz (AC adapter method)

Power Input:

Max. 100 VA

Dimensions:

13.5” (W) x 8.0” (D) x 6.5” (H)

Weight:

12 lbs
